Welding manipulator
2019-03-18 20:24

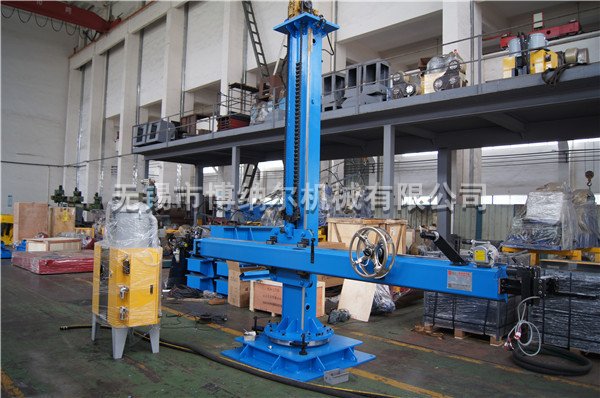

Welding manipulator
Detailed description
The automatic welding center consists of welding manipulator, welding power source (including MIG/MAG, TIG, PLASMA WELDING, SAW), welding roller frame (or welding positioner) to weld metal containers and structural parts. The equipment can be controlled separately and jointly. According to customer's needs, weld tracker, arc length tracker, oscillator, monitor, flux conveying and recycling devices can be selected. It is suitable for pressure vessel, chemical machinery, refrigeration equipment, nuclear power construction, metallurgical construction, engineering machinery, petrochemical engineering and many other industries.

Options: 1, electric/manual mobile trolley 2, electric/manual cross fine-tuning 3, manned seat or platform 4, weld seam indication 5, monitoring system 6, flux delivery and recovery system



small-scale
light
Medium-sized
Heavy
Super heavy
Specification type
LH1010
LH1515
LH2020
LH2030
LH2535
LH3030
LH3040
LH4050
LH5050
LH5060
LH6070
LH6060
LH7070
LH8080
Lifting stroke(mm)

1000
1500
2000
2000
2500
3000
3000
4000
5000
5000
6000
6000
7000
8000
Horizontal telescopic stroke(mm)
1000
1500
2000
3000
3500
3000
4000
5000
5000
6000
7000
6000
7000
8000
Lifting speed(mm/min)
435
1000
1000
1400
1400
Horizontal telescopic speed(mm/min)
Manual/electric adjustable
128-1280
110-1100
110-1100
150-1500
Minimum distance under crossarm along off-track surface(mm)

800
965（Mobile rotary type）
930（Fixed rotary type）
1100（Mobile rotary type）
 1095（Fixed rotary type）
1350（Mobile rotary type）
 1325（Fixed rotary type）
1350（Mobile rotary type）
 1325（Fixed rotary type）
Maximum allowable load on front end of crossarm(kg)
50
100
150
300
500
Column rotation
angle(°)
±180°
±180°
±180°
±180°
±180°
speed（rpm）
Manual
Manual
0.1/Manual
0.1/Manual
0.7
Trolley Speed(mm/min)
Manual
Manual/1500
1500
2500
2500
Interior gauge of trolley（mm）
——
1000/840
1750
1808
2500
Outline size
High * total
2400*
 1800
3600*
 3000
4100*
 3500
4100*
 4500
4600*
 5000
5650*
 4800
5650*
 5800
6650*
 6800
7900*
 6800
7900*
 7800
8900*
 8800
9450*
 8300
10450*
 9300
11450*
 10300
Trolley size
 1250/1050*190 1400*1480*210
1880*1200*265（Mobile rotary type）
1200*1200*170（Fixed rotary type）		 2500*2100*330（Mobile rotary type）
1800*1500*312（Fixed rotary type）		 3200*2200*375（Mobile rotary type）
2000*2000*350（Fixed rotary type）		 3200*2900*375（Mobile rotary type）
2500*2500*350（Fixed rotary type）
